Material: High strength aluminum alloy, nylon plus fiber glass, stainless steel
Product property: They are characterized by high mechanical stability, reduced dimensions for easier handling, high mechanical and climatic resistance. Cable gripping device in insulating material ensures the double insulation of the neutral core and avoids damage to sheath, secured parts, no tools required. Stainless steel bail with two marbles compressed on the end, this conception allows an easier locking on the body of the clamp. They are in accordance with NFC-041.
Material: Nylon plus fiber glass
Product property: They plastic anchoring clamp is suitable for insulated low-voltage ABC cable. It is also suitable for multiple conductors.
Easy installation and perfect insulated function. It is in accordance with the NFC33-042.

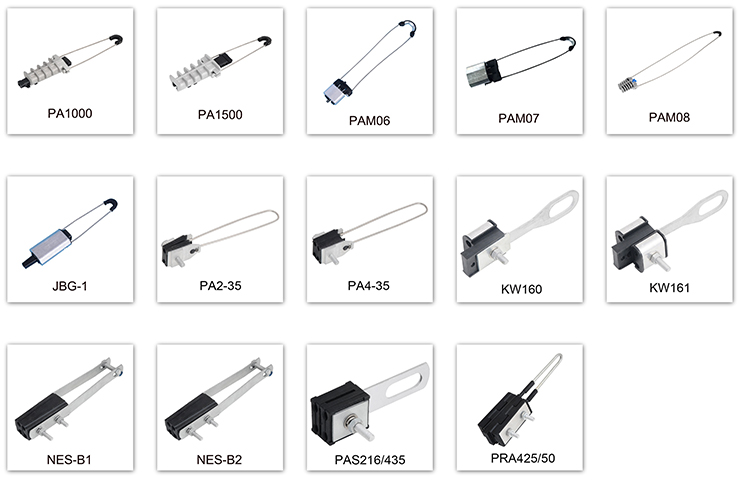

| Type | Cable size/mm2 | Breaking load/daN | Cable |
| PA1000 | 35-50 | 1600 | 1 |
| PA1500 | 50-70 | 1600 | 1 |
| PAM06 | 2*16-4*35 | 550 | 2 |
| PAM07 | 4*16-4*35 | 670 | 4 |
| PAM08 | 10-35 | 600 | 1 |
| JBG-1 | 35-70 | 1500 | 1 |
| PA2-25 | 2*16-2*35 | 250 | 2 |

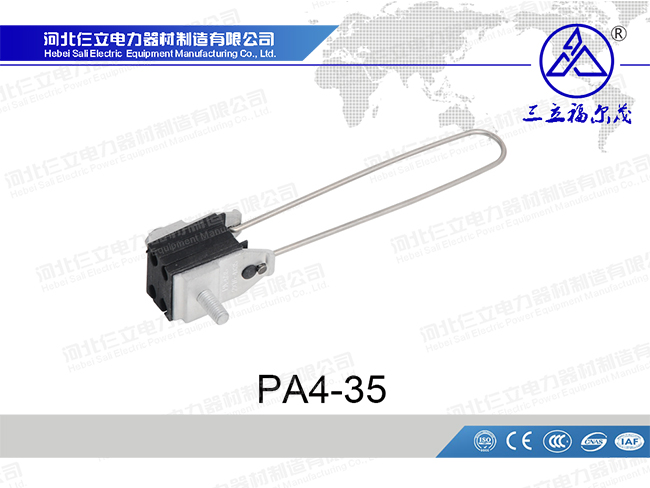

| PA4-35 | 4*16-4*35 | 300 | 4 |
| KW160 | 2*16-2*35 | 550 | 2 |
| KW161 | 4*16-4*35 | 600 | 4 |
| NES-B1 | 4*16-4*50 | 2100 | 4 |
| NES-B2 | 4*70-4*120 | 2100 | 4 |
| PAS216/436 | 16-35 | 600 | 1 |
| PRA425/50 | 2*16-4*35 | 960 | 2 |
