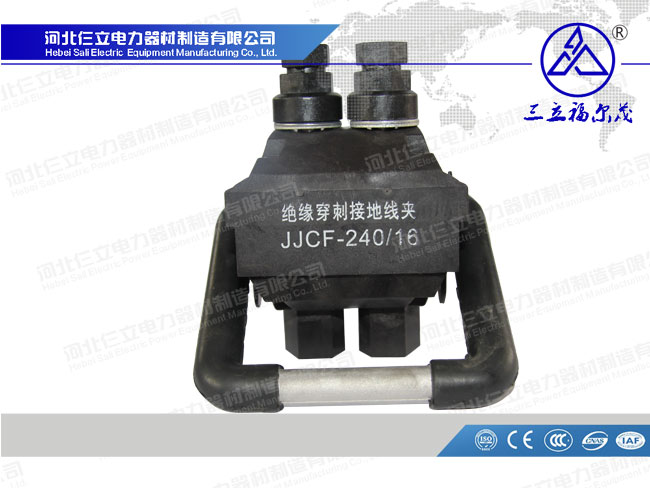

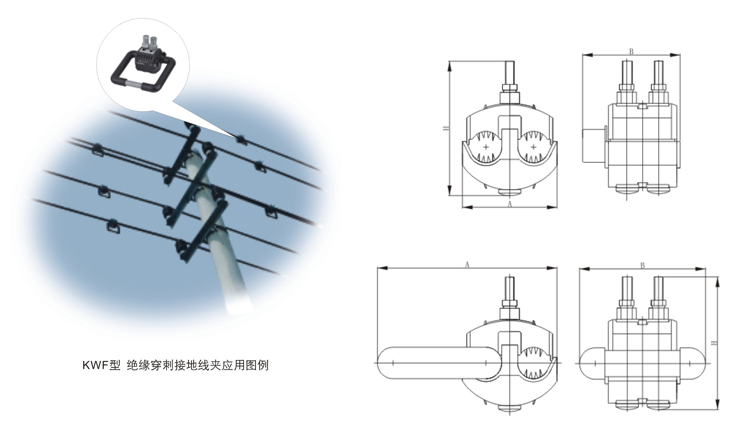

10kV Insulation piercing grounding connectors (CONWELL type) selection table
It is suitable for 10kV overhead insulated wire grounding protection and temporary electrical inspection.
| Type | Equivalent Type | (kV) Applicable Voltage | (mm2) Applicable Wire | (mm) Main Size | (A) Nominal Current | (枚) Bolt Quantity (pcs) | (mm) Piercing Depth |
| ABH | |||||||

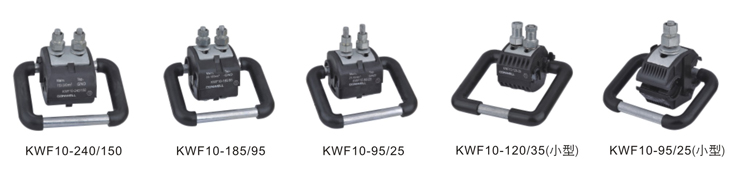

| KWF10-240/150 | JJCD10-150-240 | 10 | 150-240 | 160140112.5 | 476 | 2 | 4-5 |
| KWF10-185/95 | JJCD10-95-185 | 10 | 95-185 | 152140112.5 | 476 | 2 | 4-5 |
| KWF10-95/25 | JJCD10-95-25 | 10 | 25-95 | 144.514092.5 | 257 | 2 | 4-5 |
| KWF10-120/35 | 小型 | 10 | 35-120 | 14812086 | 316 | 2 | 3-4 |
| KWF10-95/25 | 小型 | 10 | 25-95 | 154120110 | 276 | 1 | 3-4 |
