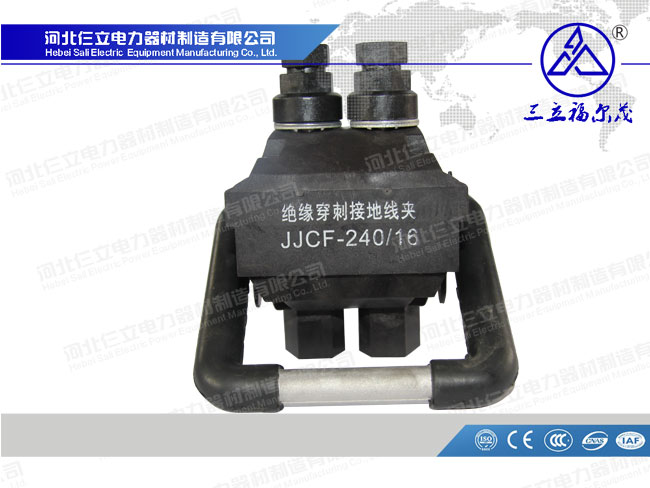

It is suitable for 10kV overhead insulated wire grounding protection and temporary electrical inspection.
| Type | Equivalent Type | (mm2) Applicable WireMain LineBranch Line | (mm) Dimensions | (A) Nominal Current | Bolt Quantity (pcs) | (mm) Piercing Depth |
| ABH | ||||||

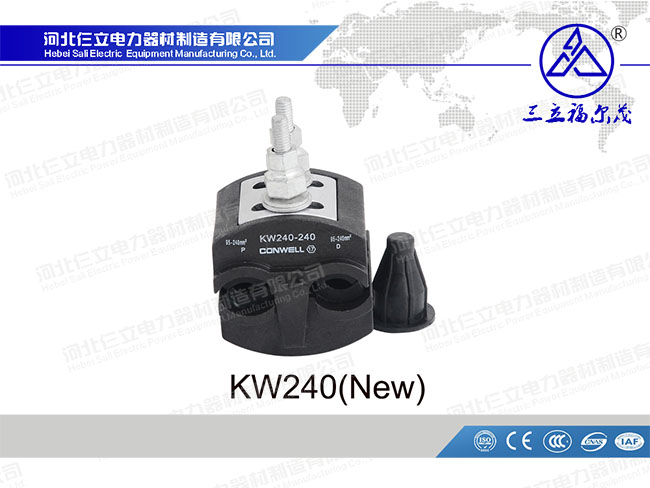

| KW10-240-240 | JJC10-4 | 95-24095-240 | 8985.5112.5 | 530 | 2 | 4.5-6 |
| KW10-240/150 | JJC10-3 | 95-24050-150 | 8983112.5 | 366 | 2 | 4.5-6 |
| KW10-240/150(新式） | JJC10-3 | 95-24050-150 | 8483112.5 | 366 | 2 | 4.5-6 |
| KW10-185/50 | JJC10-2 | 95-18516-50 | 78.577.5112.5 | 180 | 2 | 4.5-6 |
| KW10-95/70 | JJC10-1 | 25-9516-70 | 6882.5107.5 | 226 | 2 | 4.5-6 |

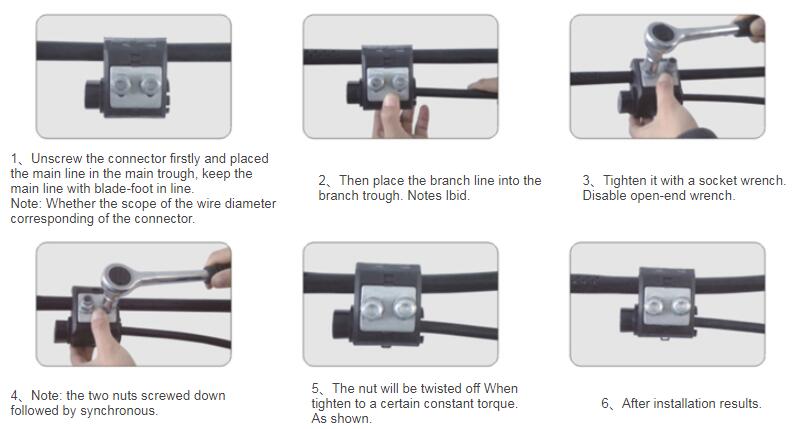

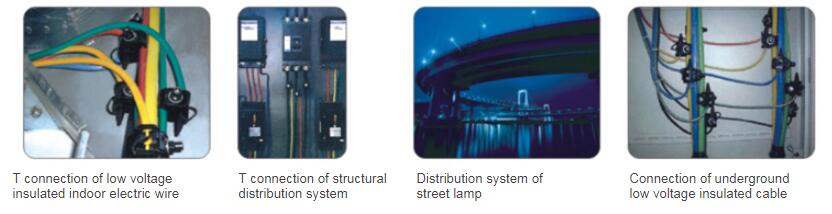

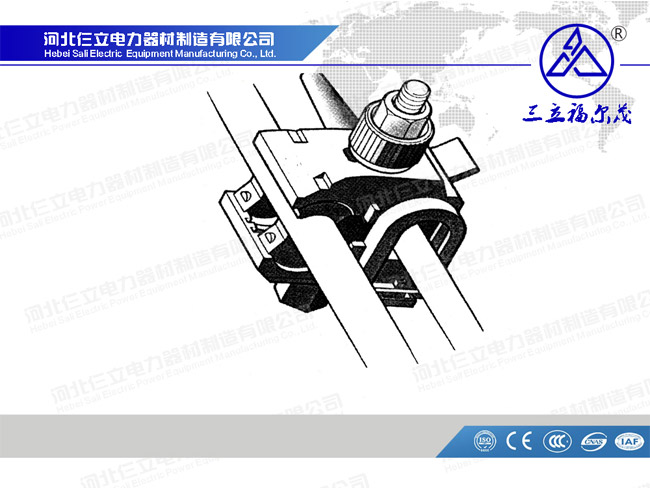

Typical application

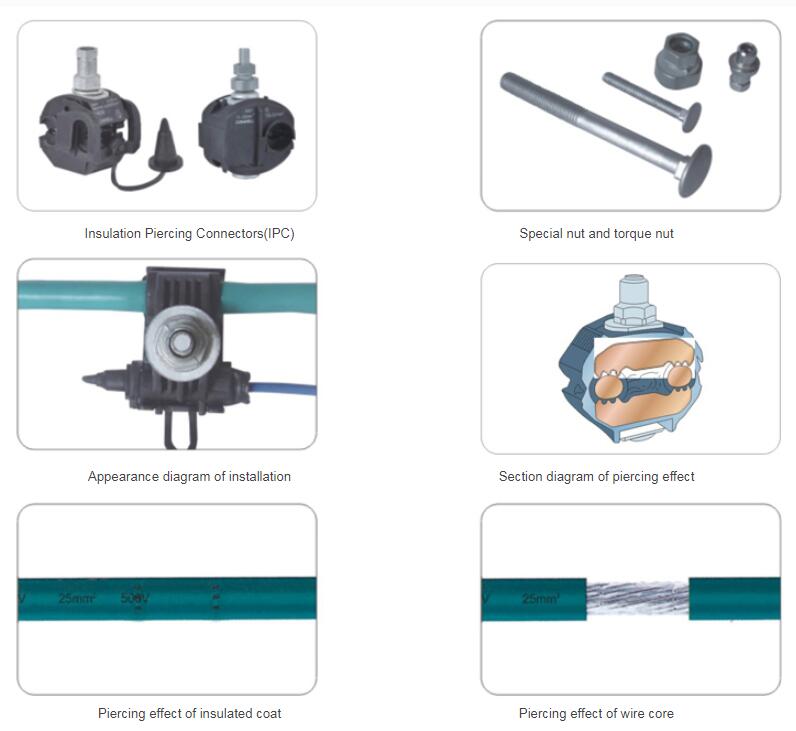

General of insulation piercing connector(IPC)
1. Piercing connector, simple installation, need not strip the cable coat.
2. Moment nut, piercing pressure is constant, keep good electric connection and make no damage to lead.
3. Self-seam frame, wetproof, waterproof, and anti-corrosion, extend the using life of insulated lead and connector.
4. Adopted special connecting tablet, apply to joint of Cu(Al) and Cu(Al) or Cu and Al.
5. Small electric connecting resistance, connecting resistance less than 2.5 times of the resistance of branch conductor with the same length.in accordance with the standard DL/T765.1-2001.
6. Special insulated case body, resistance to illumination and environmental aging, the insulation strength can up to 12kV.
7. Arc surface design, apply to connection with the same (different) diameter, wide connection scope (0.75mm2-400mm2/td)
Performance testing
1. Mechanical performance: the grip force of the wire clamp is 1/10 bigger than the break force of the lead, It comply with GB2314-1997.
2. Temperature rise performance: under the condition of big current, the temperature rise of connector is less than that of connection lead.
3. Heat circle performance: conforms to GB/T2317.3-2000, the heat circle trial standard for electric fitting.
4. Waterproof insulation performance: conforms to the relevant testing requirements in Part 2 of GB/T13140.4-1998.
5. Resistance to corrosion performance: under the condition of SO2 and salt fog, it can do three times of fourteen days circle testing.
6. Environmental aging performance: under the circumstance of ultraviolet, radiation, dry and moist, expose it with change of temperature and heat impulse for six weeks.
7. Fire-proof performance: insulation material of the connector withstands glowing filament test. Conform to the requirements in Chapter 4-10 of GB/T5169.4.

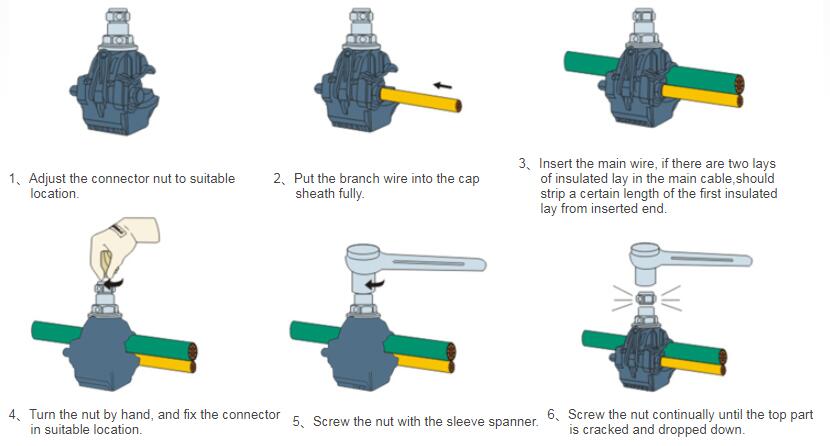

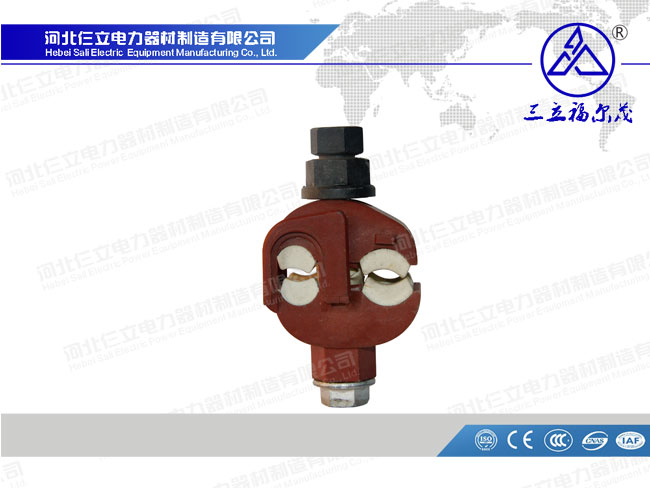

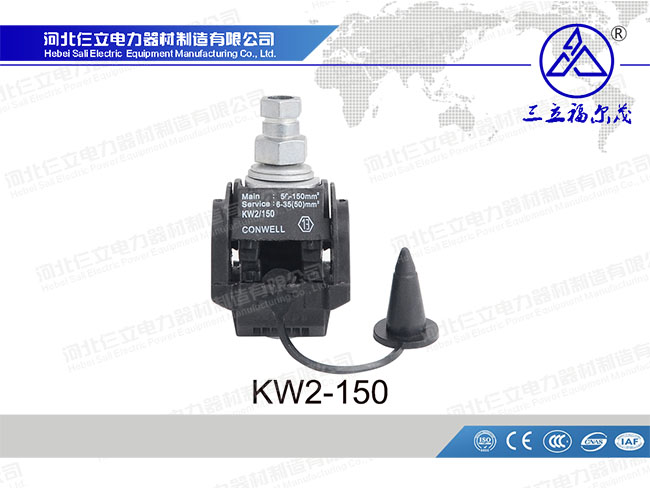

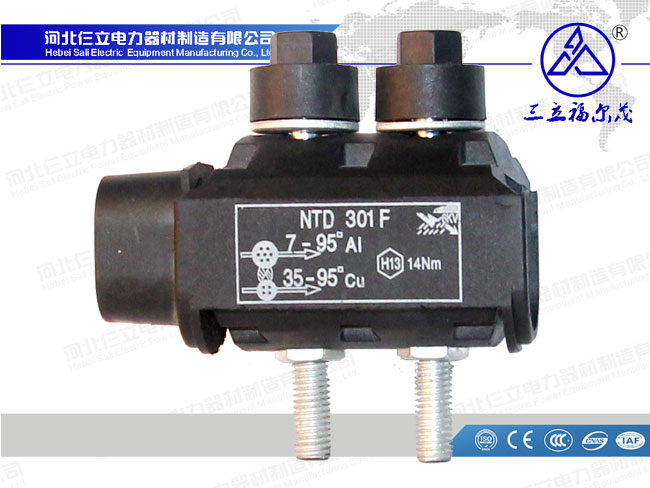

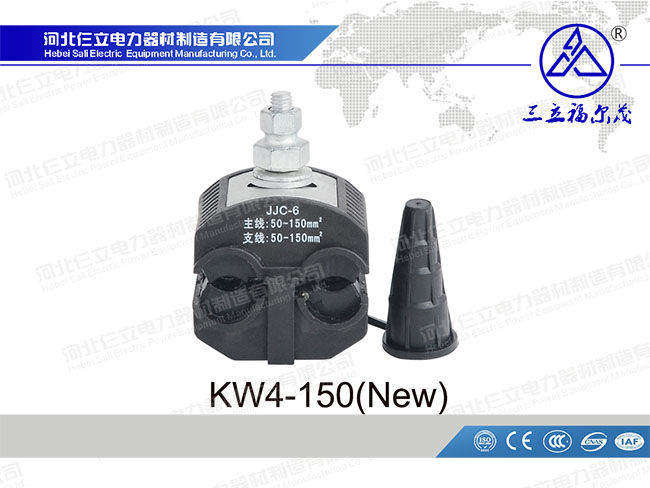

IPC-Insulation Piercing Connector
(1) IPC ( insulating piercing clamp) are suitable for connecting hign-low voltage insulating line which quote tap line from the main line, or connecting the jumping conductor between the two tension phase.
(2) Insulation connector/piercing connector/insulation piercing connector(IPC):With specially designedcontact teeth and special insulation plastic cover.
(3)All components are connected with the flame of fire-retardant properties
(4)Using corrosion-resistant shell, Anti-climate change, high-intensity ultraviolet insulation materials.
Detail specification
| Model | Conductor range(mm2) | No.Bolt | |
| Main | Tap | ||
| JBC-2 | 35-150 | 35-150 | 1 |
