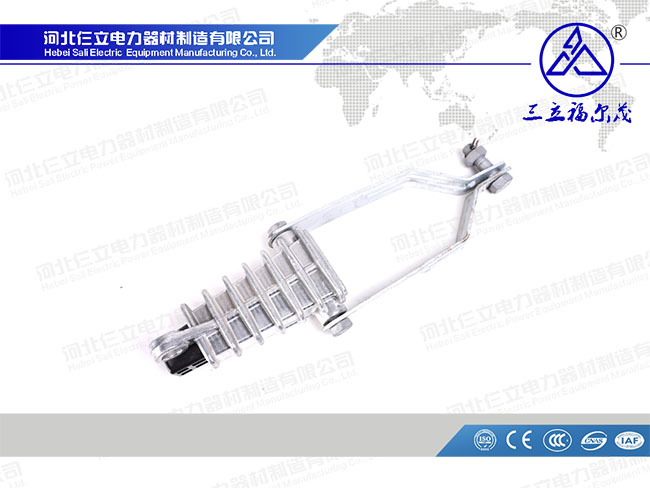

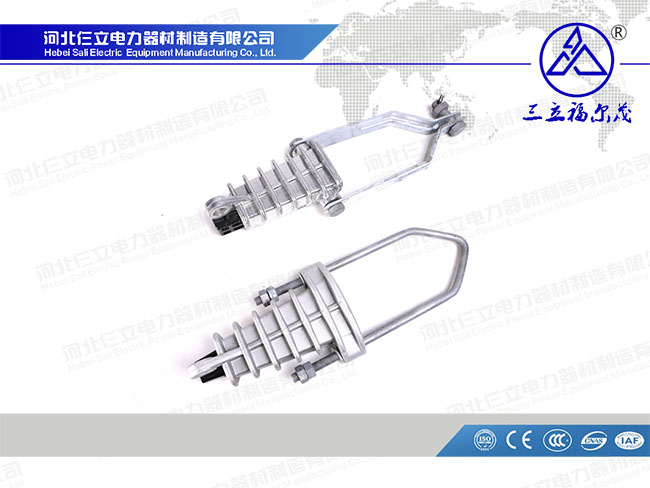

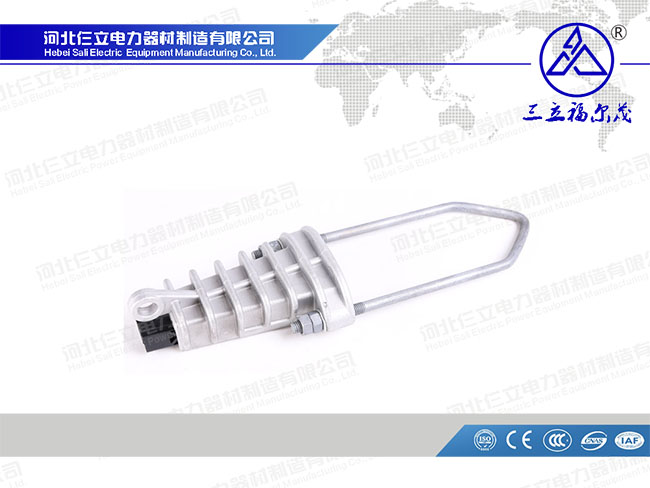

Name: Wedge Tension Clamp NXJ Type
No.: K-005
Addtime: 2017-06-27
Views : 8
Tension clamp detail parameter as bellow:
| Cat No | Aerial insulationaluminum 2 conductor Spe. (mm ) | Aerial insulation aluminum conductor Dia. (mm) | Cat No | Aerial insulationaluminum 2 conductor Spe. (mm ) | Aerial insulation aluminum conductor Dia. (mm) | Grip strength KN | Failure load KN | ||||
| 1kV | 10kV | 1kV | 10kV | 1kV | 10kV | 1kV | 10kV | ||||
| NXJ-1 | 16 25 35 50 70 | 7.2 8.4 9.8 11.2 12.8 | NXJ-1B | 25 35 50 | 8.4 9.8 11.2 | 2.5 2.5 3.4 4.6 6.7 | 10.5 | ||||
| NXJ-2 | 50 70 95 120 | 16 25 35 50 | 11.2 12.8 14.8 16.2 | 12.8 13.8 15.1 16.8 | NXJ-2B | 70 95 120 | 25 35 50 | 12.8 14.8 16.2 | 13.8 15.1 16.8 | 4.6 6.7 8.9 11.3 | 22.5 |
| NXJ-3 | 120 150 185 240 | 70 95 120 150 | 16.2 18.2 20.2 22.8 | 18.4 19.8 21.4 23.0 | NXJ-3B | 150 185 240 | 95 120 150 | 18.2 20.2 22.8 | 19.8 21.4 23.0 | 11.3 13.6 17.3 22.5 | 34.5 |
| NXJ-4 | 185 240 | 25.2 27.4 | NXJ-4B | 185 240 | 25.2 27.4 | 22.5 22.5 | 43.4 | ||||
