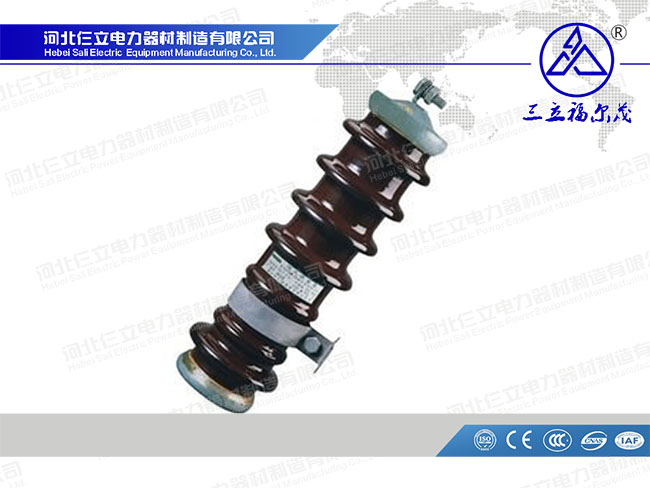

Name: Porcelain Housed Lightning arrester
No.: P-002
Addtime: 2017-06-26
Views : 12
Main Technical Parameter:
| Type | Rated Voltage KV（rms） | Maximum Continous Operation Voltage KV (rms) | Power frequency sparkover voltage ≥ Kv (r.m.s) | 1.5/50us Lightning Current Sparkover Voltage (kv) | 8/20us Lightning Current impulse kv（crest） | Square wave current impulse withstand （A） | 4/10us High current impulse （KA) | ||
| kV(r.m.s) | ≯kV | 10KA | 5KA | 10KA | 5KA | ||||
| Y5C-3 | 3 | 2.55 | 5.5 | 9 | 9 | 200 | 100 | 65 | 65 |
| Y5C-6 | 6 | 5.1 | 11 | 18 | 18 | 200 | 100 | 65 | 65 |
| Y5C-9 | 9 | 7.65 | 16 | 27 | 27 | 200 | 100 | 65 | 65 |
| Y5C-10 | 10 | 8.4 | 18 | 30 | 30 | 200 | 100 | 65 | 65 |
| Y5C-12 | 12 | 10.2 | 22 | 36 | 36 | 200 | 100 | 65 | 65 |
| Y5C-15 | 15 | 12.7 | 26 | 45 | 45 | 200 | 100 | 65 | 65 |
| Y5C-18 | 18 | 15.3 | 33 | 54 | 54 | 200 | 100 | 65 | 65 |
| Y5C-21 | 21 | 17.0 | 36 | 63 | 63 | 200 | 100 | 65 | 65 |
| Y5C-24 | 24 | 19.5 | 40 | 72 | 72 | 200 | 100 | 65 | 65 |
| Y5C-27 | 27 | 22.0 | 45 | 81 | 81 | 200 | 100 | 65 | 65 |
| Y5C-30 | 30 | 24.4 | 50 | 90 | 90 | 200 | 100 | 65 | 65 |
| Y5C-33 | 33 | 27.5 | 56 | 99 | 99 | 200 | 100 | 65 | 65 |
| Y5C-36 | 36 | 29.0 | 61 | 108 | 108 | 200 | 100 | 65 | 65 |
