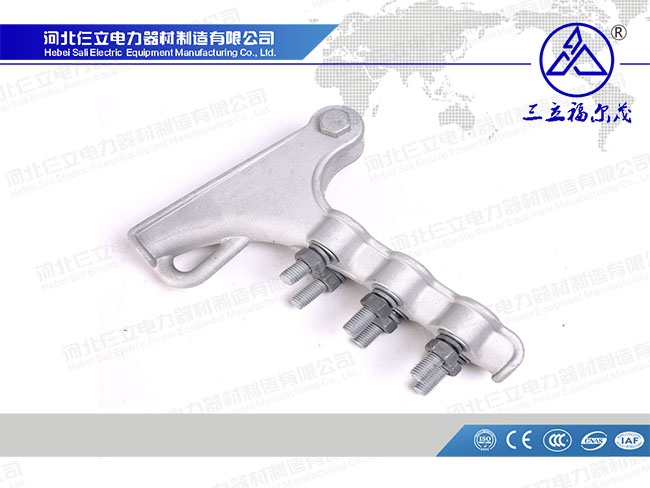

Name: Pistol Grip Strain Clamps NLL Type
No.: K-003
Addtime: 2017-06-27
Views : 7
Main Technical Parameter:
| Model | Conductor Diamters mm | Dimension(mm) | U-bolt | Breaking Load (kN) | Approx. Weight (kg) | |||||
| L1 | L2 | R | C | M | No. | diamter | ||||
| NLL-1 | Φ5.0~15.5 | 140 | 130 | 8.0 | 19 | 16 | 2 | M12 | 40 | 0.85 |
| NLL-2 | Φ8.2~17.0 | 212 | 180 | 9.0 | 22 | 16 | 3 | M12 | 70 | 1.5 |
| NLL-3 | Φ11.4~20.0 | 295 | 150 | 10.0 | 24 | 16 | 4 | M14 | 70 | 2.74 |
| NLL-4 | Φ13.6~25.0 | 324 | 255 | 12.5 | 30 | 18 | 4 | M16 | 100 | 3.96 |
| NLL-5 | Φ16.0~32.0 | 400 | 320 | 16.0 | 36 | 22 | 5 | M16 | 120 | 5.65 |
| NLL-6 | Φ28.5~46.5 | 480 | 380 | 23.5 | 50 | 24 | 6 | M16 | 120 | 9.0 |
