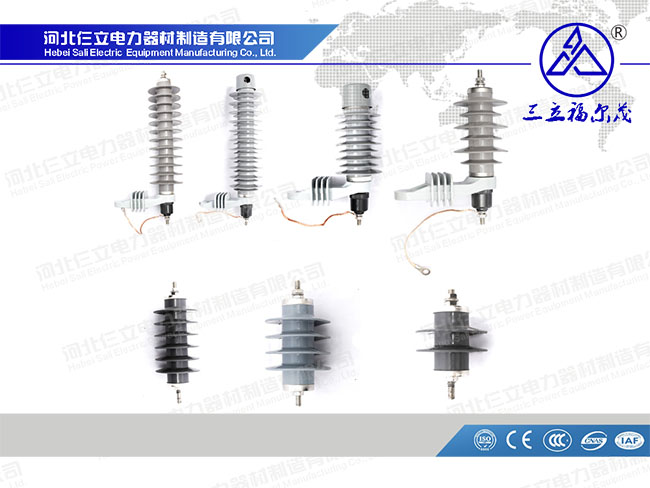

M.V. Lightning Arrester Distribution Class from 3KV to 66KV

Name: M.V. Lightning Arrester Distribution Class from 3KV to 66KV

No.: P-003

Addtime: 2017-06-26

Standard: GB11032-2000(IEC60099-4, IEEE.C62.11

Metal-Oxide Surge Arrester Without Gaps (Nominal Discharge Current 5KA)：

Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Max. Residual Voltage			2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand（kA）
Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Steep Current Impulse (kv)	30/60µ s Switching current impulse (kv)	8/20µ s Lightning current impulse (kv)	2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand（kA）
YH5W-3	3	2.55	9.5	7.7	9	100	65
YH5W-6	6	5.1	19.0	15.4	18	100	65
YH5W-9	9	7.65	28.5	23.1	27	100	65
YH5W-10	10	8.3	36.0	27.0	30	100	65
YH5W-11	11	9.5	38.5	30.0	33	100	65
YH5W-12	12	10.2	38.0	30.8	36	100	65
YH5W-15	15	12.7	47.5	38.5	45	100	65
YH5W-18	18	15.3	57.0	46.2	54	100	65
YH5W-21	21	17.0	66.5	53.9	63	100	65
YH5W-24	24	19.5	76.0	61.6	72	100	65
YH5W-27	27	21.9	85.5	69.3	81	100	65
YH5W-30	30	24.4	95.0	76.5	90	100	65
YH5W-33	33	26.8	104.0	84.7	99	100	65
YH5W-36	36	29.0	114.0	92.7	108	100	65
YH5W-42	42	34.1	132.3	100.1	126	100	65

Metal-Oxide Surge Arrester Without Gaps (Nominal Discharge Current 10KA)：

Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Max. Residual Voltage			2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand（kA）
Type	Rated Voltage (kV)(rms)	Maximun Continuous Operating Voltage (kV)(rms)	Steep Current Impulse (kv)	30/60µ s Switching current impulse (kv)	8/20µ s Lightning current impulse (kv)	2000μs Square Wave Current Impulse Withstand (A) (crest)	4/10µ s High current impulse withstand（kA）
YH10W-3	3	2.55	9.5	7.7	9	250	100
YH10W-6	6	5.1	19.0	15.4	18	250	100
YH10W-9	9	7.65	28.5	23.1	27	250	100
YH10W-10	10	8.3	36.0	27.0	30	250	100
YH10W-11	11	9.5	38.5	30.0	33	250	100
YH10W-12	12	10.2	38.0	30.8	36	250	100
YH10W-15	15	12.7	47.5	38.5	45	250	100
YH10W-18	18	15.3	57.0	46.2	54	250	100
YH10W-21	21	17.0	66.5	53.9	63	250	100
YH10W-24	24	19.5	76.0	61.6	72	250	100
YH10W-27	27	21.9	85.5	69.3	81	250	100
YH10W-30	30	24.4	95.0	76.5	90	250	100
YH10W-33	33	26.8	104.0	84.7	99	250	100
YH10W-36	36	29.0	114.0	92.7	108	250	100
YH10W-42	42	34.1	133.0	100.0	126	250	100
YH10W-48	48	39.0	152.0	126.0	150	400	100
YH10W-54	54	43.0	171.0	139.0	162	400	100
YH10W-60	60	48.0	208.0	160.0	180	400	100
YH10W-66	66	53.4	230.0	172.0	198	400	100
