Name: GW1-12G(D) Series Outdoor High Voltage Isolator Switch
No.: Y-005
Addtime: 2017-06-28
Views : 5
Application:
GW1 series outdoor high voltage isolator switch are high voltage switchgears of monopole structure and be applied for the connection and disconnection of circuit under voltage without loading. Knife switch with earthing with CS mould manual operating mechanism can prevent disoperation such as switching in on line earthing wires and earthing wire. And the operating staff needs not to make additional suspension of earthing wires. The pollution resistance type outdoor high voltage isolator can meet the demands of clients for heavily polluted areas and can make effective solutions on the pollution flashover during the operation of disconnecting switches.

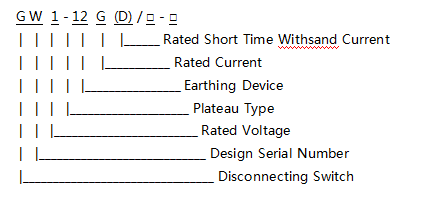

Model and Implication:
Main Technical Data:
| Item | Unit | Parameter | Remark |
| Rated Voltage | KV | 12 | |
| Rated Current | A | 630 1250 | |
| Rated Peak Withstand Current | KA | 50 100 | The earthing switch is the same with the main switch |
| Rated Short Time Withstand Current | KA/4s | 20 40 |
