Application:

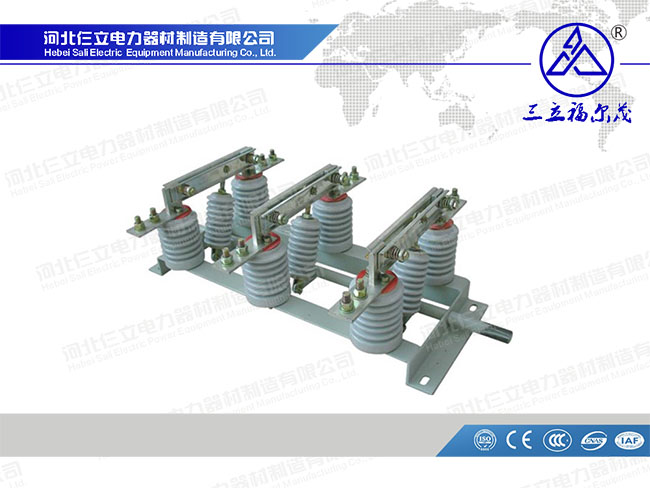

GN19-12 series indoor high voltage isolation switch is high voltage switchgear,used for power system under rated voltage 12KV,AC 50HZ,with CS6-1 type dependent manual operating mechanism.As in
the case of a voltage without load,for opening and closing circuit.Also have derived products anti pollution type, plateau type and add charged display device, etc.
Main Technical Data:
| Model | Rated Voltage KV | Rated Current A | Rated short-time withstand current 4s kA | Rated peak withstand current (KA) |
| GN19-12(e)/400-12.5 | 12 | 400 | 12.5 | 31.5 |
| GN19-12(e)/630-20 | 12 | 630 | 20 | 50 |
| GN19-12(e)/1000-31.5 | 12 | 1000 | 31.5 | 80 |
| GN19-12(e)/1250-31.5 | 12 | 1250 | 31.5 | 80 |
