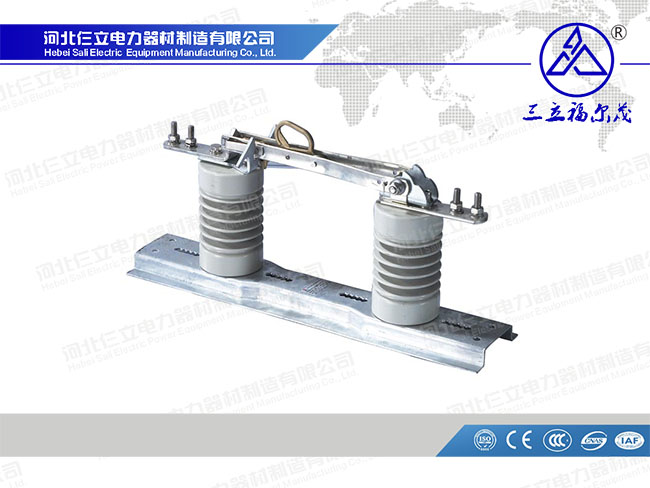

Name: FGW9-12 HV Switch Disconnector
No.: Y-001
Addtime: 2017-06-28
Views : 8
Application:
The FGW9-12 outdoor high voltage switch disconnector is the high voltage switch equipment. The product is suitable for power system with rated voltage 10Kv to make or break power supply under circumstances of with voltage and no load. When our disconnector switch with load, it must use special hand-held devices to start the load operation.

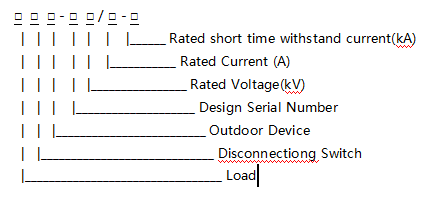

Model and Implication:
Technical Specification:
| Model | Rated Voltage kV | Rated Current (A） | 4S Heat Steady Current (kA) | Impulse withstand voltage | 1min power-frequency withstand voltage | |||
| To earth (kV) | Across open contacts (kV) | To earth (kV) | Across open contacts (kV) | |||||
| Plain Type (mounting point altitude not exceed 200m) | FGW9-12/400 | 12 | 400 | 12.5 | 75 | 85 | 42 | 48 |
| FGW9-12/630 | 12 | 630 | 20 | 75 | 85 | 42 | 48 | |
| FGW9-12/900 | 12 | 900 | 25 | 75 | 85 | 42 | 48 | |
| FGW9-12/1250 | 12 | 1250 | 40 | 75 | 85 | 42 | 48 | |
| Plateau Type (altitude 2000m-4000m) | FGW9-15/400 | 12 | 400 | 12.5 | 110 | 125 | 47 | 54 |
