Name: Composite Pin Insulator
No.: F-010
Addtime: 2017-06-22
Views : 9

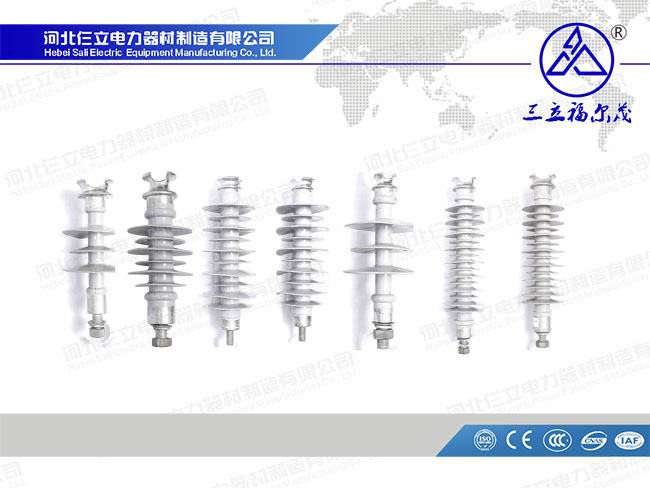

Composite Pin Insulator
Main Technical Parametes (performance meet GB/T20142-2006 IEC61592)
| Product Model | Rated Voltage (kv) | Rated Mechanical Bending Load (kn) | Structure Height H. (mm) | Min. Arc Distance (mm) | Min. Creepage Distance (mm) | Diameter of Shed (mm) | Lightning Impulse Withstand Voltage (peak)(kv) | P.F.1min Wet Withstand Voltage (virtual value)(kv) |
| FPQ-11/4 | 11 | 4 | 295 | 140 | 360 | 90/88 | 105 | 105 |
| FPQ-11/5 | 11 | 5 | 280 | 180 | 380 | 90 | 105 | 105 |
| FPQ-11/10 | 11 | 10 | 300 | 165 | 420 | 140/114 | 105 | 105 |
| FPQ-11/12.5 | 11 | 12.5 | 320 | 195 | 450 | 110 | 95 | 95 |
