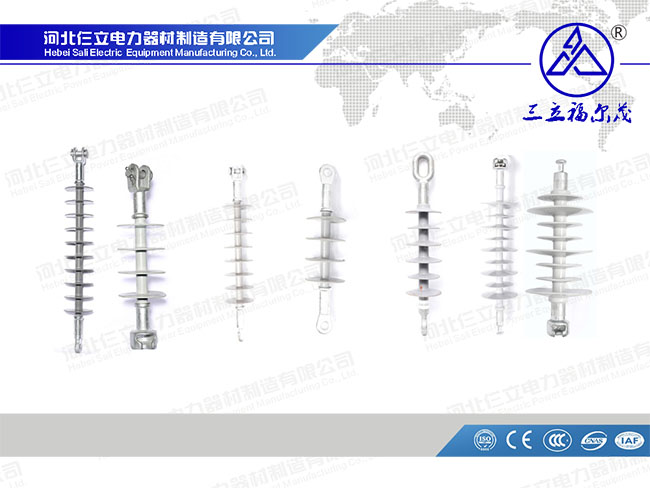

Composite Long Rod Insulator
Usage:
Used for distribution and high voltage transmission line, applicable for heavy pollution areas.
System Voltage: 11kV, 33kV, 66kV(69kV), 132kV, 230kV, 400kV, 500kV,800KV,1000KV
Specified Mechanical Load (SML): 45kN, 70kN, 120kN, 160kN, 210kN, 300kN,400kN,550kN
Color: Brown, Gray, and customer's requirement.
Applicable Standard: IEC, ANSI, CAN, BS, AS, IS or Customer's requirement
Features:
- Light weight, small size, easy for transportation and installation
- High mechanical strength
- Super performance for anti-pollution
Structure:
Consist of silicone rubber housing, fiberglass rod and end-fittings. For system voltage 132kV and above, recommend corona rings for one or both ends. Also it’s available if some applications required corona rings for lower system voltage.
Production Process:
Injection process, which keep the core and housing strongly bonded without any space, with best internal insulating performance, and could avoid the puncture occurred on interface.
Main Technical Parametes (performance meet GB/T9519-2008、IEC61109 and IEC61952)
| Product Model | Rated Voltage (kv) | Rated Mechanical Bending Load (kn) | Structure Height H. (mm) | Min. Arc Distance (mm) | Min. Creepage Distance (mm) | Diameter of Shed (mm) | Lightning Impulse Withstand Voltage (peak)(kv) | P.F.1min Wet Withstand Voltage (virtual value)(kv) |
| FXBW-11/70-SB | 11 | 70 | 350 | 180 | 420 | 92 | 95 | 45 |
| FXBW-11/100-SB | 11 | 100 | 380 | 185 | 420 | 92 | 95 | 45 |
| FXBW-11/80-SB | 11 | 80 | 450 | 280 | 550 | 144/114 | 125 | 65 |
| FXB-24/70-EE | 24 | 70 | 425 | 230 | 575 | 98/88 | 125 | 65 |
| FXBW-24/70-SB | 24 | 70 | 440 | 270 | 850 | 130/100 | 125 | 65 |
| FXBW-24/120-SB | 24 | 120 | 545 | 320 | 900 | 115/85 | 145 | 65 |
| FXB-25/70-CT | 25 | 70 | 500 | 330 | 735 | 92 | 145 | 65 |
| FXB-33/70-SB | 33 | 70 | 505 | 330 | 900 | 92 | 200 | 95 |
| FXBW-33/100-SB | 33 | 100 | 570 | 385 | 920 | 115/75 | 200 | 95 |
| FXBW-33/80-SB | 33 | 80 | 720 | 555 | 1650 | 144/114 | 250 | 135 |
| FXBW-35/100-EH | 35 | 100 | 750 | 430 | 1400 | 130/100 | 185 | 95 |
| FXBW-36/100-SB | 36 | 120 | 670 | 430 | 1400 | 130/100 | 185 | 95 |
Note: We can produce special connection structure and the height of the product according to your requirments.
