Name: Composite Horizontal LIne Post Insulator
No.: F-039
Addtime: 2017-06-23
Views : 11

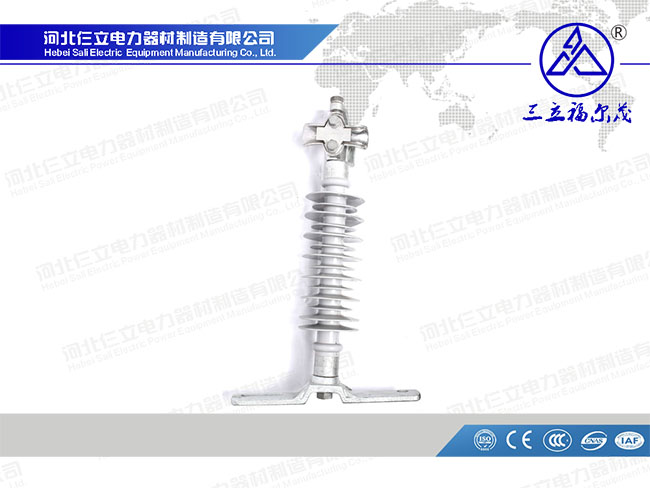

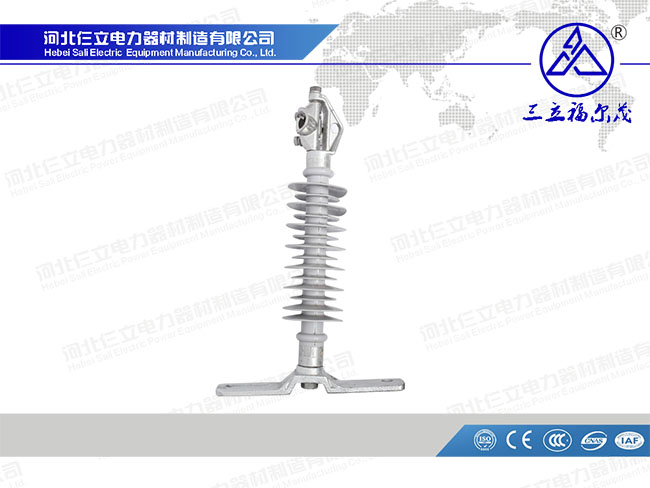

Composite Horizontal Line Post Insulator
Main Technical Parameters:
| Spe.&Type | Rated Voltage (kv) | Specified Catilever Load (kn) | Length ± 15mm | Leakage Distance (mm) | Dry arc Distance (mm) | Power Frequency withstand 50HZ | Lightning Impul. Withstand 1.2/50 | ||
| Dry KV | Wet KV | Post KV | Negat. KV | ||||||
| FC-12 | 12 | 8 | 385 | 600 | 196 | 110 | 100 | 150 | 190 |
| FC-17 | 24 | 6 | 435 | 800 | 246 | 120 | 110 | 180 | 215 |
| FC-24 | 24-36 | 6.3 | 645 | 924 | 350 | 150 | 140 | 235 | 270 |
| FC-35 | 36 | 5.0 | 485 | 950 | 296 | 180 | 165 | 285 | 325 |
| FC-66 | 66-115 | 3.0 | 970 | 1950 | 660 | 355 | 285 | 570 | 615 |
| FC-110 | 110-115 | 2.4 | 1300 | 3510 | 1105 | 435 | 355 | 680 | 735 |
