Name: Composite Cross-arm Insulator
No.: F-040
Addtime: 2017-06-23
Views : 8

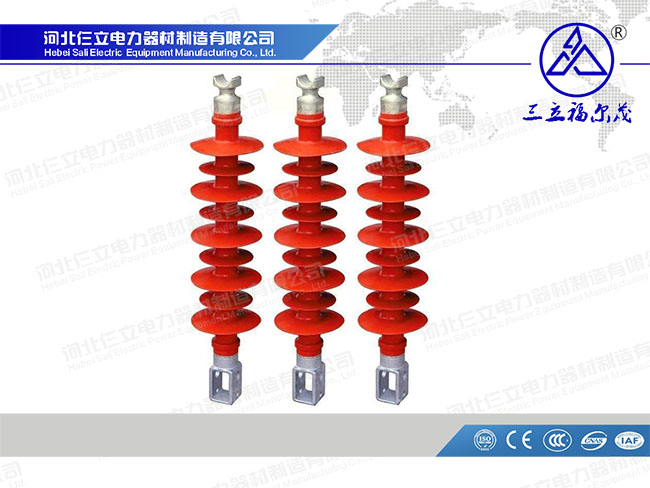

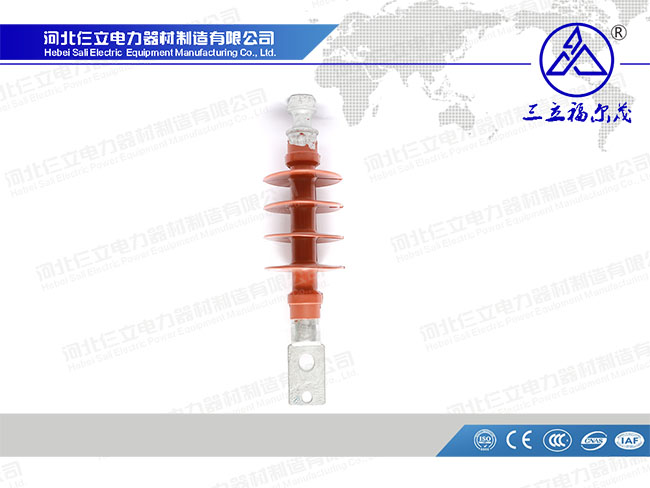

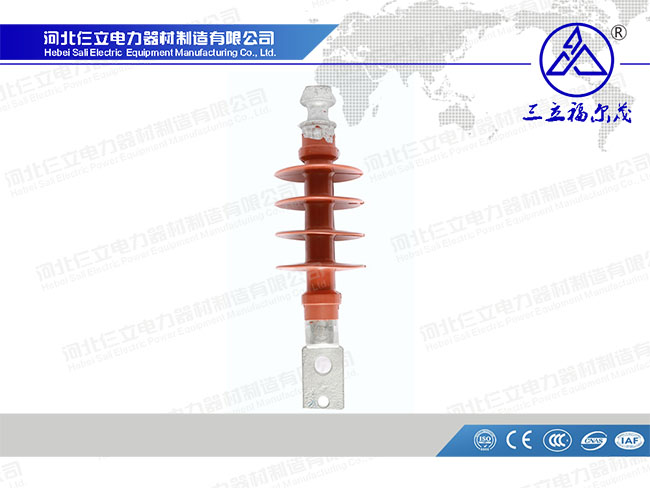

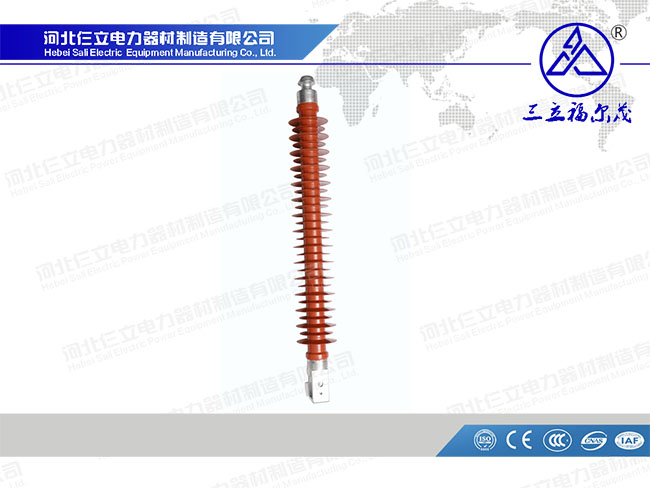

Composite Cross-Arm Insulator
General Introduction
These products for the urban net rebuild can effctively solve the shortage of corridor in urban power line, reduce the pole height and economy lots of financial and material resources. Because of the high strength, to avoid the?porcelain cross-arm causes to concatenate breakage of high strength accident, and fine anti-pollution. And the products of procelain cross-arm cannot instead of it.
Main Technical Parametes (GB/T20142-2006, JB/T 8460-1996 JBT/8737-1998)
| Product Model | Rated Voltage (kv) | Rated Mechanical Bending Load (kn) | Structure Height H. (mm) | Min. Arc Distance (mm) | Min. Creepage Distance (mm) | Diameter of Shed (mm) | Lightning Impulse Withstand Voltage (peak)(kv) | P.F.1min Wet Withstand Voltage (virtual value)(kv) |
| FS-10/5 | 10 | 5 | 280 | 130 | 300 | 85 | 75 | 42 |
| FS-15/6 | 15 | 6 | 400 | 245 | 520 | 80 | 75 | 42 |
| FSW-35/5 | 35 | 5 | 625 | 480 | 1400 | 145/115 | 265 | 95 |
| FS2-35/5 | 35 | 5 | 660 | 480 | 1120 | 142 | 265 | 95 |
| FSW-66/10 | 66 | 10 | 790 | 650 | 1920 | 160/140 | 325 | 140 |
| FSW-110/10 | 110 | 10 | 1260 | 1060 | 3360 | 215/185 | 550 | 230 |
| FSW-220/5 | 220 | 5 | 2165 | 1920 | 5510 | 160/140 | 1050 | 395 |
| FSW-110/6 | 110 | 6 | 1220 | 965 | 2860 | 160/140 | 550 | 230 |
