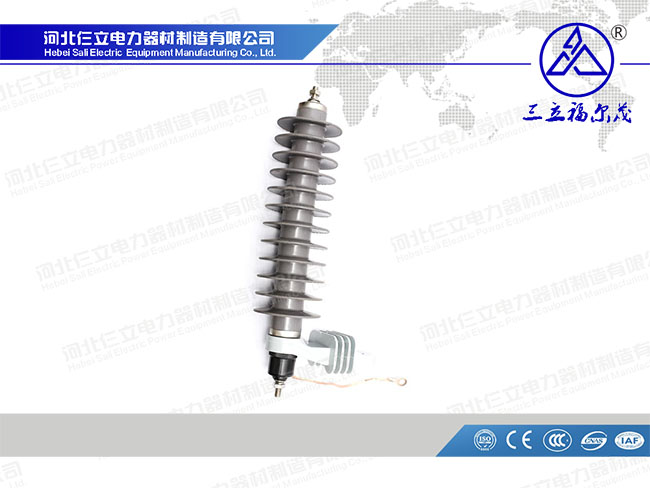

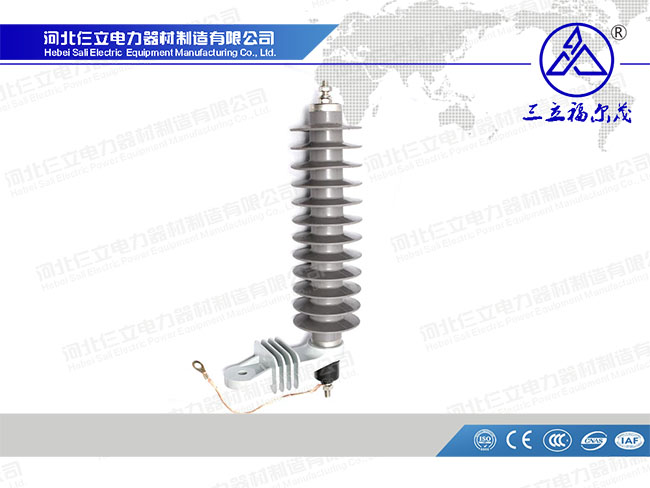

Name: 30KV Polymer Housed Arrester
No.: P-007
Addtime: 2017-07-05
Views : 7
| Type | Rated Voltage (kV)(rms) | Maximun Continuous Operating Voltage (kV)(rms) | Max. Residual Voltage | 2000μs Square Wave Current Impulse Withstand (A) (crest) | 4/10µ s High current impulse withstand（kA） | ||
| Steep Current Impulse (kv) | 30/60µ s Switching current impulse (kv) | 8/20µ s Lightning current impulse (kv) | |||||
| YH5W-30 | 30 | 24.4 | 95.0 | 76.5 | 90 | 100 | 65 |
| YH10W-30 | 30 | 24.4 | 95.0 | 76.5 | 90 | 250 | 100 |
